This is not perfect guide, myself's memo...

Adjust#1 and 2, I don't know.
But a moved then effecting screen...
If you try this adjust, before a checks marked line to its.

Stoper/rubberd-wedge for if moving to foward or back of YolkUnit. before remove Stoper(3)and YolkBand screw.

2pole a pair magnet for purity.
4, 6pole for convergence.(stastic and dynamic)

Stastic Convergence

At first show center area adjust red and blue by 4pole
Magenta(blue, red) to on green. Successful? then White!
same a looing center, adjust magenta onto green.
Dynamic Convergence

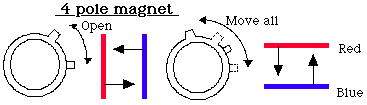

Show a monitor Cross hatch Pattern(Tool ex: snooper) 4 pole magnet yolk move to open, red Vert-line onto blue and all of rotate(pair of 4pole)for H-line.

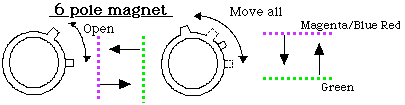

whats 4,6pole convergence
